Product Information

At Age Craft Manufacturing, there are three types of colonial railing:

All three are available in the following colors: White, Black, Bronze, and Pebblestone Clay. Contact for more information.

White
Black
Bronze
Pebblestone Clay

Features and Benefits

Features

  • All aluminum parts
  • Grooved top rail
  • All stainless steel color coordinated fasteners and rivets
  • Rail sections and posts feature electrostatically applied and baked-on enamel finish.
  • All fittings are powder coated in coordinating colors
  • Sections are available and sized up to 16' in length
  • Easy to install


Benefits

  • Durable: Won't rust or need painting
  • More pleasing appearance
  • Low maintenance
  • Resists chipping, fading, chalking longer than wet coating methods
  • Can be used on sloped or level applications with no added cost for custom manufacturing
  • Cuts can be slightly off : mistakes are not so costly
  • Able to be used on virtually any project

System Components

Optional 2
Bottom Rail Straight Connector
Top Rail Straight Connector
Slope Adjustable Newel Post Flange
Newel Post Stiffener
Level Newel Post Flange
3/4
Color Coordinated Stainless Steel Lag Screws
Color Coordinated Wedge Bolt
Bottom Rail Utility
Top Rail Utility
Top & Bottom, Round Column Adapter
Top Horizontal Swivel
Bottom Horizontal Swivel
Ball Top Cap for Newel Post
Newel Post
Crossover Cap

Custom sizes are available. Please call or email us your request.

Standard Colonial Railing

Our premiere colonial aluminum railing feature a 2 1/2" wide top channel with a choice of 3/4" x 1/2" wide picket on 4" centers, or 2" x 1/2" wide picket on 6" centers.


This railing system is manufactured with the highest quality heavy aluminum extrusion and features an electrostatically applied baked on enamel finish in white, black, bronze, or pebblestone clay.


This system is engineered to exceed BOCA Code Section 1616, hence can be used in both commercial and residential applications.

Standard Railing Parts and Accessories

Section Size Picket Size 36" High 42" High 48" High
2FT Section 3/4" Picket A36752 A42752 A48752
2FT Section 2" Picket A3622 A4222 A4822
3FT Section 3/4" Picket A36753 A42753 A48753
3FT Section 2" Picket A3623 A4223 A4823
4FT Section 3/4" Picket A36754 A42754 A48754
4FT Section 2" Picket A3624 A4224 A4824
5FT Section 3/4" Picket A36755 A42755 A48755
5FT Section 2" Picket A3625 A4225 A4825
6FT Section 3/4" Picket A36756 A42756 A48756
6FT Section 2" Picket A3626 A4226 A4826
7FT Section 3/4" Picket A36757 A42757 A48757
7FT Section 2" Picket A3627 A4227 A4827
8FT Section 3/4" Picket A36758 A42758 A48758
8FT Section 2" Picket A3628 A4228 A4828

Maximum section length is 16 feet.

Newel Post

ANP -38 38" Newel Post with Top & Bottom Flange
ANP - 44 44" Newel Post with Top & Bottom Flange
ANP - 50 50" Newel Post with Top & Bottom Flange
A - 100 Straight Connector [4 per pkg]
A - 200 Utility Connector [4 per pkg]
A - 300 3/4" Stub Shoe [1 per pkg]
A - 302 2" Stub Shoe [1 per pkg]
A - 400 Lag Screw [color coordinated] [4 per pkg]
A-401 Wedge Bolt [color coordinated]
A - 500 Lead Anchors [4 per pkg]
A - 600 King Kon Masonry Nail [4 per pkg]
A - 700 Round Column Adapter [4 per pkg]
A - 800 Horizontal Swivel [4 per pkg]
CO - 36 36" Straight Crossover Kit
SCO- 36 36" Step Crossover Kit
CO - 42 42" Straight Crossover Kit
SCO- 42 42" Step Crossover Kit
CO - 48 48" Straight Crossover Kit
SCO- 48 48" Step Crossover Kit

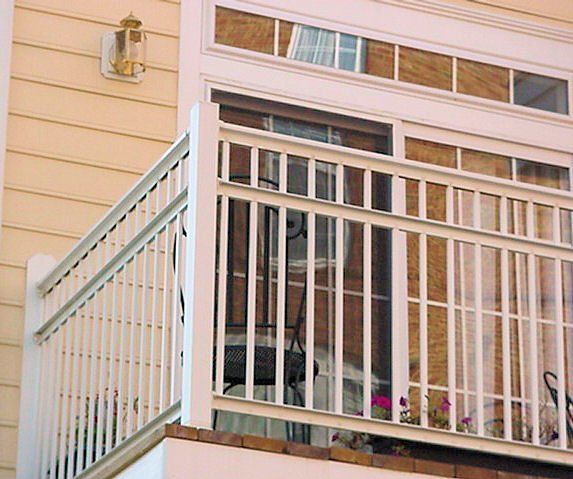

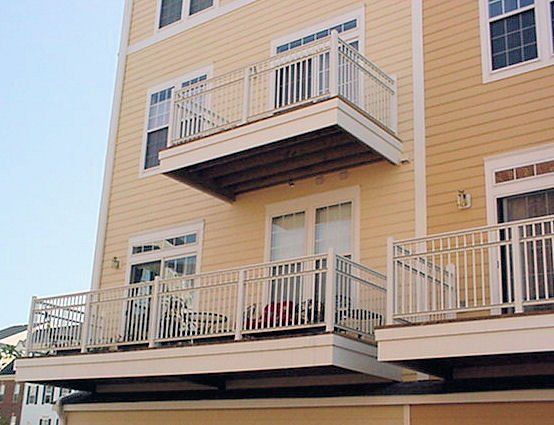

Twin Colonial Railing

The Colonial Twin Rail is available in both 2" and 3/4" pickets. As is the case with our other Colonial products, it is available in white, black, bronze, or pebblestone clay. The addition of the intermediary rail below the top rail gives the Colonial Twin Rail a different look.

White
Black
Bronze
Pebblestone Clay

Twin Railing Parts and Accessories

Section Size Fencing Style 36" High
2FT Section 3/4" Picket TW36752
2FT Section 2" Picket TW3622
3FT Section 3/4" Picket TW36753
3FT Section 2" Picket TW3623
4FT Section 3/4" Picket TW36754
5FT Section 3/4" Picket TW36755
5FT Section 2" Picket TW3625
6FT Section 3/4" Picket TW36756
6FT Section 2" Picket TW3626
7FT Section 3/4" Picket TW36757
7FT Section 2" Picket TW3627

The maximum section length is 16 feet.

Twin Railing Colonial Railing- Newel Post

ANP - 38 38" Newel Post with Top & Bottom Flange
ANP - 44 44" Newel Post with Top & Bottom Flange
ANP - 50 50" Newel Post with Top & Bottom Flange
TW - 100 Straight Connector [6 per pkg]
TW - 200 Utility Connector [6 per pkg]
A - 300 3/4" Stub Shoe [1 per pkg]
A - 302 2" Stub Shoe [1 per pkg]
A - 400 Lag Screw [4 per pkg]
A - 500 Plastic Conical Anchors [4 per pkg]
A - 600 King Kon Masonry Nail [4 per pkg]
TW - 700 Round Column Adapter [6 per pkg]
TW - 800 Horizontal Swivel [6 per pkg]
CO - 36 36" Straight Crossover Kit
SCO - 36 36" Step Crossover Kit
CO - 42 42" Straight Crossover Kit
SCO - 42 42" Step Crossover Kit
CO - 48 48" Straight Crossover Kit
SCO - 48 48" Step Crossover Kit

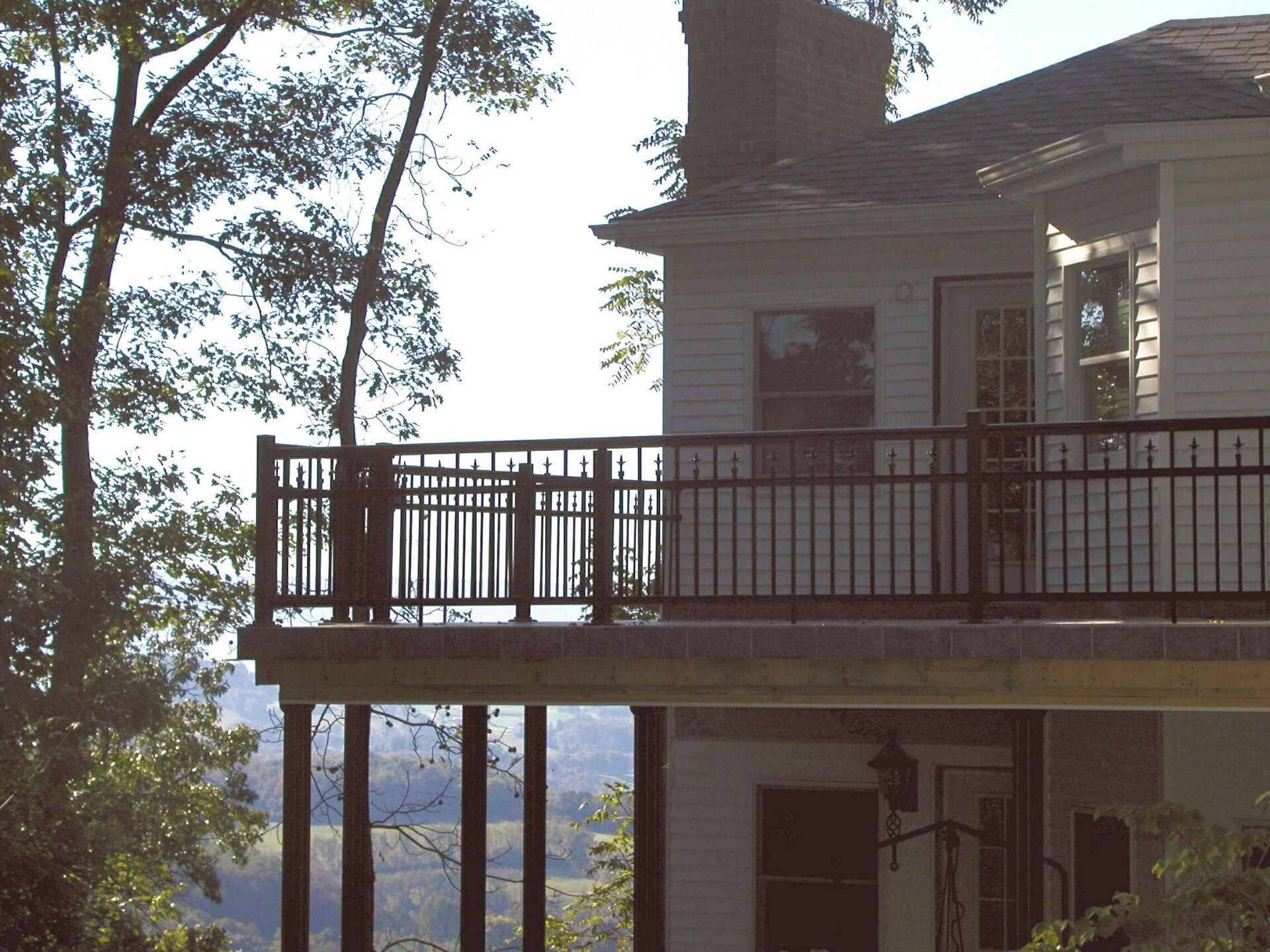

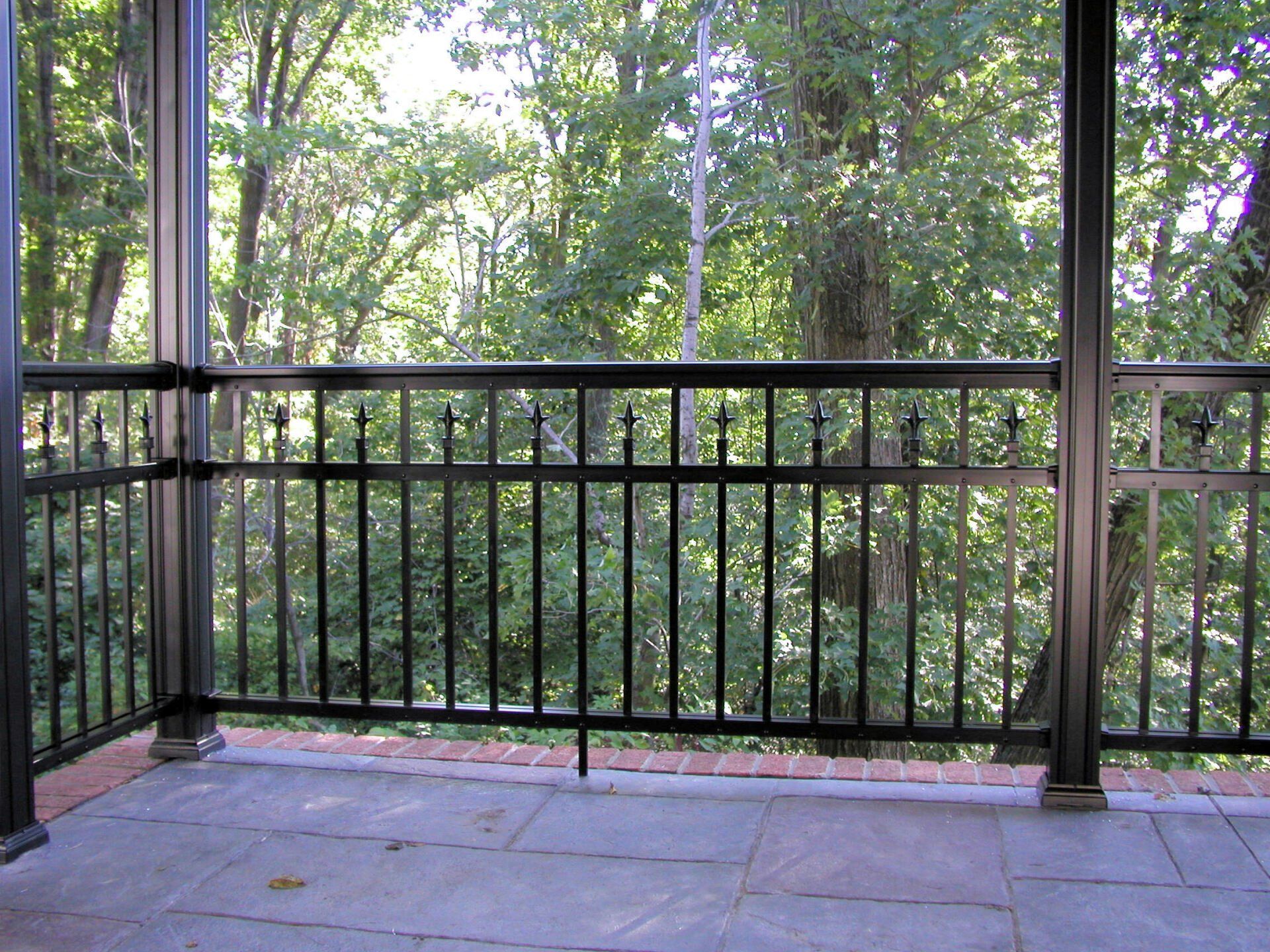

French Quarter Railing

The Colonial French Quarter style fencing is built using only 3/4" pickets on 4" centers. As is the case with our other Colonial products, it is available in white, black, bronze, or pebblestone clay.


Either the Imperial or Majestic finial is placed on alternating pickets and finished off with a standard colonial top rail over it all.

White
Black
Bronze
Pebblestone Clay

French Quarter Railing Parts and Accessories

Section Size Fencing Style 36" High 42" High 48" High
2 FT Section 3/4" Picket FQ36752 FQ42752 FQ48752
3 FT Section 3/4" Picket FQ36753 FQ42753 FQ48753
4 FT Section 3/4" Picket FQ36754 FQ42754 FQ48754
5 FT Section 3/4" Picket FQ36755 FQ42755 FQ48755
6 FT Section 3/4" Picket FQ36756 FQ42756 FQ48756
7 FT Section 3/4" Picket FQ36757 FQ42757 FQ48757
8 FT Section 3/4" Picket FQ36758 FQ42758 FQ48758

French Quarter Colonial Railing - Newel Post

ANP - 38 38" Newel Post with Top & Bottom Flange
ANP - 44 44" Newel Post with Top & Bottom Flange
ANP - 50 50" Newel Post with Top & Bottom Flange
FQ - 100 Straight Connector [6 per pkg]
FQ - 200 Utility Connector [6 per pkg]
A - 300 3/4" Stub Shoe [1 per pkg]
A - 302 2" Stub Shoe [1 per pkg]
A - 400 Lag Screw [4 per pkg]
A - 500 Plastic Conical Anchors [4 per pkg]
A - 600 King Kon Masonry Nail [4 per pkg]
FQ - 700 Round Column Adapter [4 per pkg]
FQ - 800 Horizontal Swivel [6 per pkg]
CO - 36 36" Straight Crossover Kit
SCO - 36 36" Step Crossover Kit
CO - 42 42" Straight Crossover Kit
SCO - 42 42" Step Crossover Kit
CO - 48 48" Straight Crossover Kit
SCO - 48 48" Step Crossover Kit

Care and Maintenance

Mild soap and water cleaning and periodic waxing with any liquid car wax will keep your railing and columns looking like new for years to come. Use of rock salt or similar corrosives on or around flanges will cause paint failure and voids the warranty.
